Electrofusion Coupler

Quantity:
Availability:





Inquire Add to Basket

Product Description

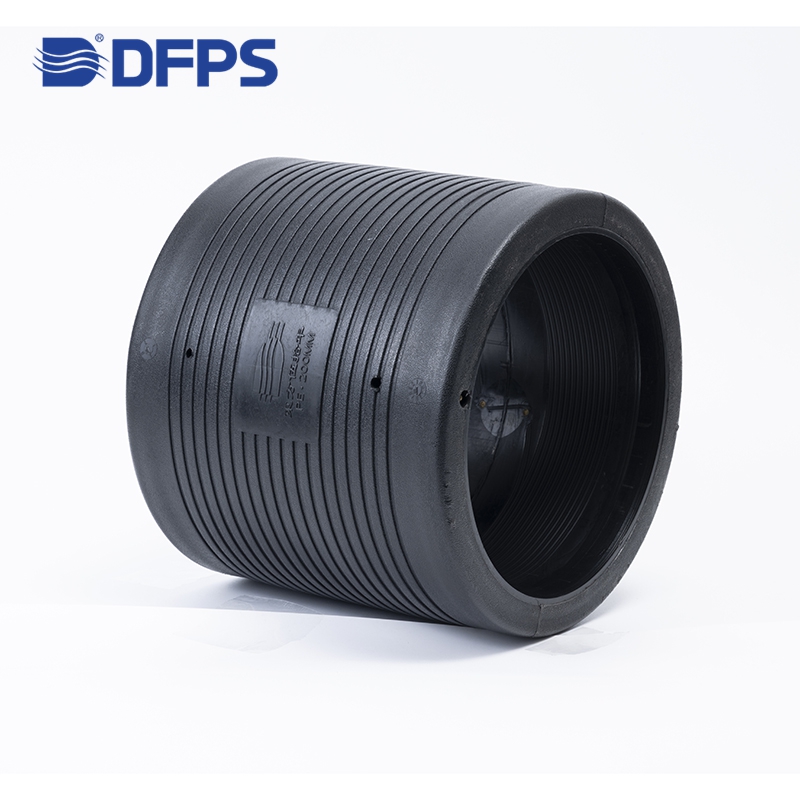

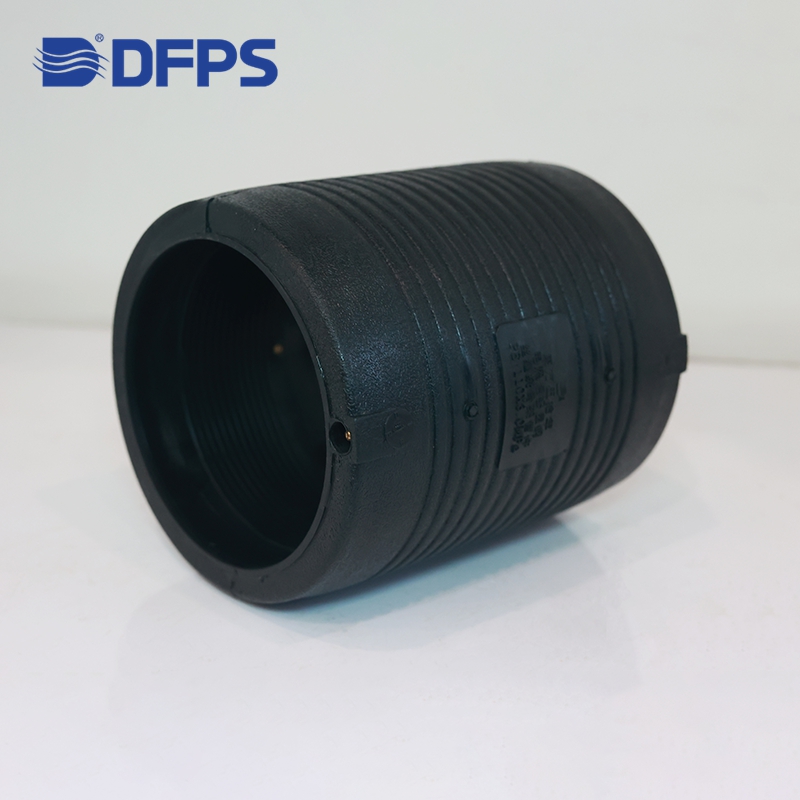

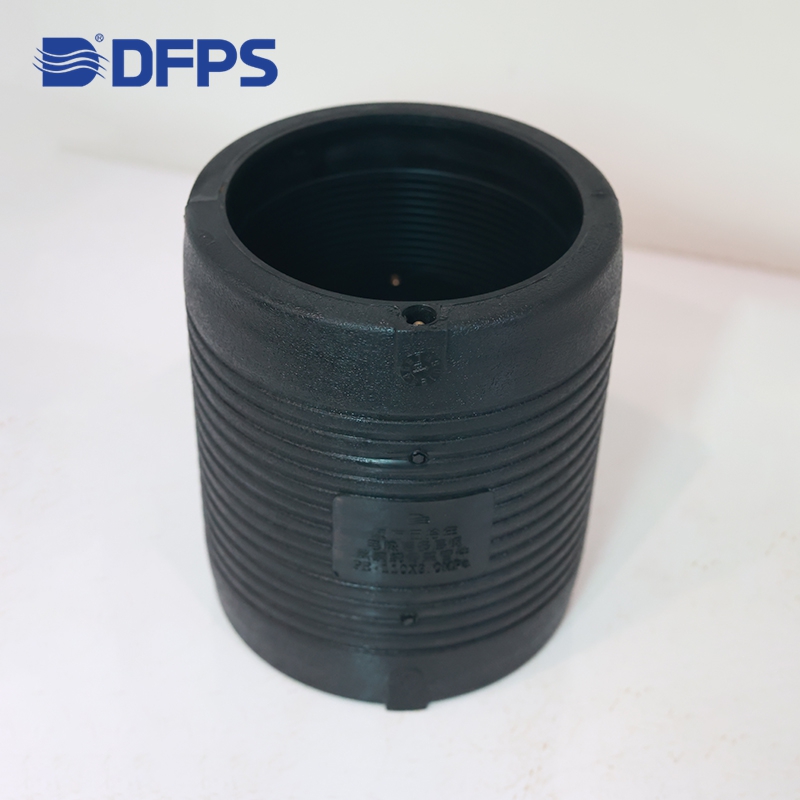

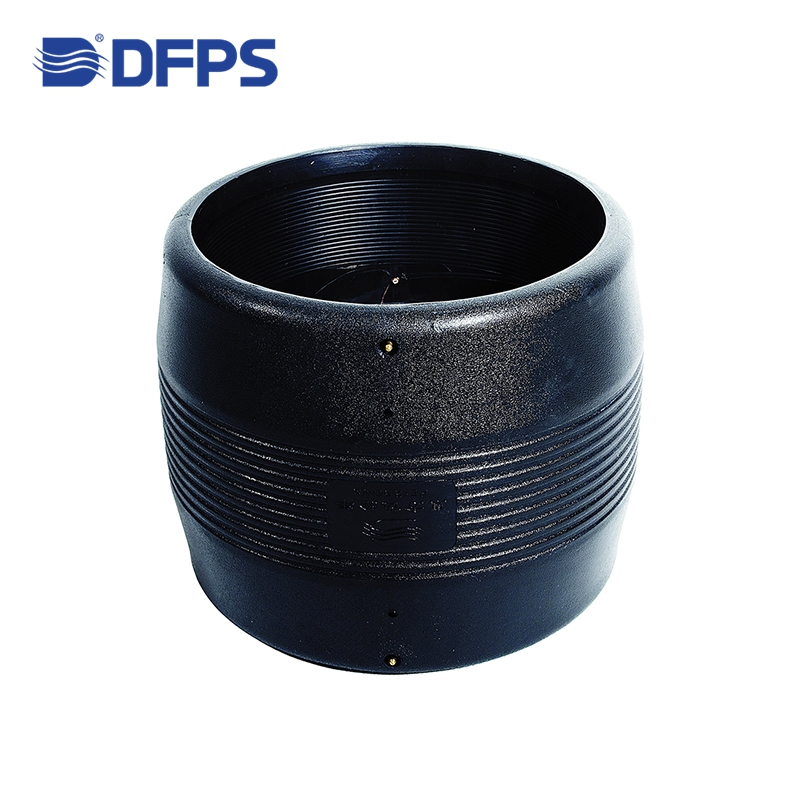

A polyethylene electrofusion equal coupling is a key fitting used to join two PE pipes of the same diameter. The inner wall of the fitting contains embedded spiral heating wires, with electrode terminals positioned at both ends. When connected to a professional electrofusion control unit, electric current heats the embedded wires, causing the contact surfaces between the fitting and the pipes to melt and fuse together, forming a strong, reliable, and leak-proof joint within the piping system.

Nominal Diameter de / mm	Fitting Outside Diameter D / mm ≥	Fitting Length L / mm ≥	Insertion Depth L₁/ mm ≥	Fusion Zone Length L₂ / mm ≥
50	65	95	45	20
63	80	110	50	20
75	95	120	55	30
90	110	135	65	35
110	140	155	75	40
140	170	170	80	40
160	200	195	95	45
200	250	220	105	50
225	270	230	110	55
250	296	240	115	65
315	373	285	135	80
355	420	290	140	90
400	473	315	150	100
450	535	320	155	100
500	595	330	160	100
560	665	340	160	140
630	710	420	200	180

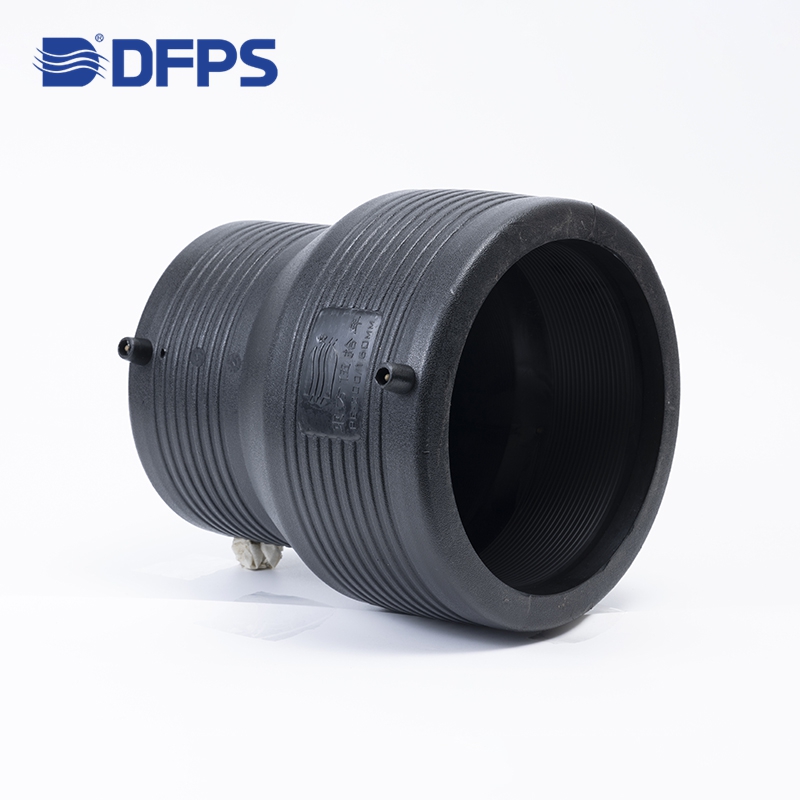

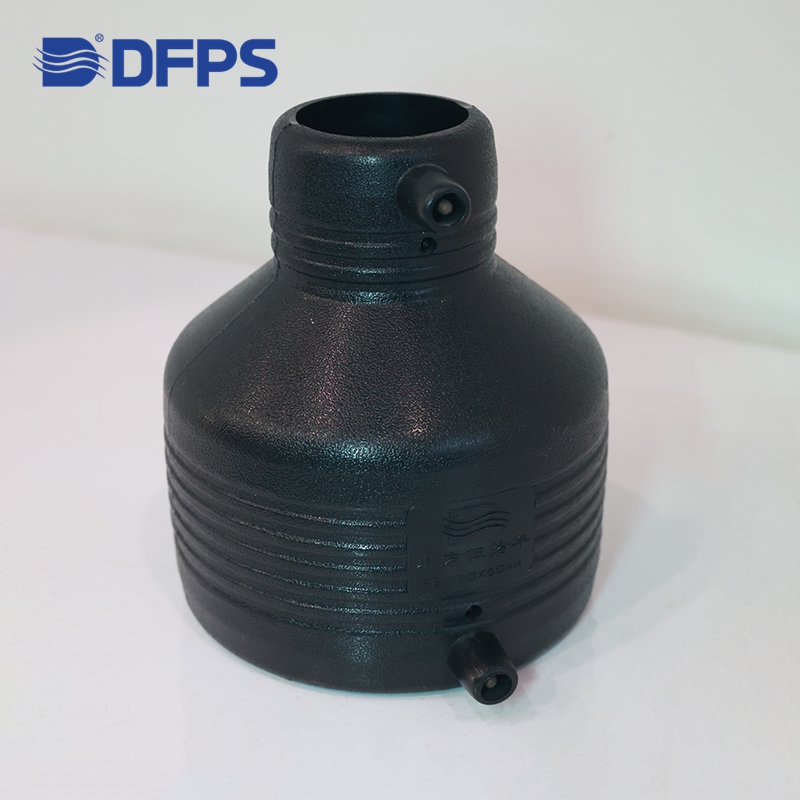

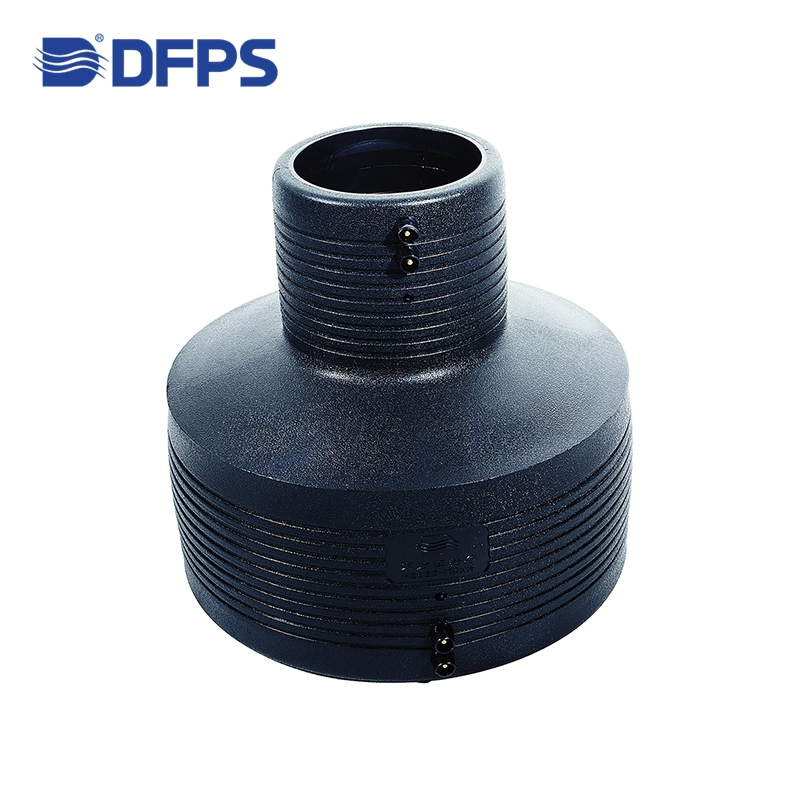

⭐Electrofusion Reducing Coupler

Electrofusion Reducing Coupler	Nominal Diameter de₁/ mm	Fitting Outside Diameter D₁/ mm ≥	Nominal Diameter de₂/mm	Fitting Outside Diameter D₂/ mm ≥	Fitting Length L/ mm ≥	Insertion Depth L₁/ mm ≥	Fusion Zone Length L₂/ mm ≥	Fusion Zone Length L₃/ mm ≥
	63	80	50	65	120	50	30	20
	75	95	50	65	135	55	35	25
	75	95	63	80	135	55	35	25
	90	110	50	65	155	65	40	20
			63	80	155	65	40	25
			75	95	175	65	40	30
	110	140	50	65	160	75	50	20
			63	80	160	75	50	25
			75	95	165	75	50	30
			90	110	175	75	50	40
	140	160	90	110	190	90	55	40
	140	160	110	140	190	90	55	40
	160	200	90	110	230	75	70	35
	160	200	110	140	230	95	70	40
	200	250	110	140	290	105	55	75
	200	250	160	200	250	105	60	60
	225	260	110	140	260	115	50	60
			140	140				65
			160	200				70
			200	250				80
	250	296	110	140	280	120	50	60
			140	160				65
			160	200				70
			200	250				80
			225	260				85
	315	373	110	140	310	140	70	70
			140	160				70
			160	200				70
			200	250				75
			225	260				75
			250	296				80
	355	420	110	140	330	150	80	70
			140	160				70
			160	200				70
			200	250				75
			225	260				75
			250	296				80
			315	373				90
	400	468	110	140	340	160	85	70
			140	160				70
			160	200				70
			200	250				75
			225	260				75
			250	296				80
			315	373				90
			355	420				95
	450	535	110	140	360	170	90	70
			140	160				70
			160	200				70
			200	250				75
			225	260				75
			250	296				80
			315	373				90
			355	420				95
			400	473				100
	500	590	110	140	380	180	100	70
			140	160				70
			160	200				70
			200	250				75
			225	260				75
			250	296				80
			315	373				90
			355	420				95
			400	473				100
450			535	110
