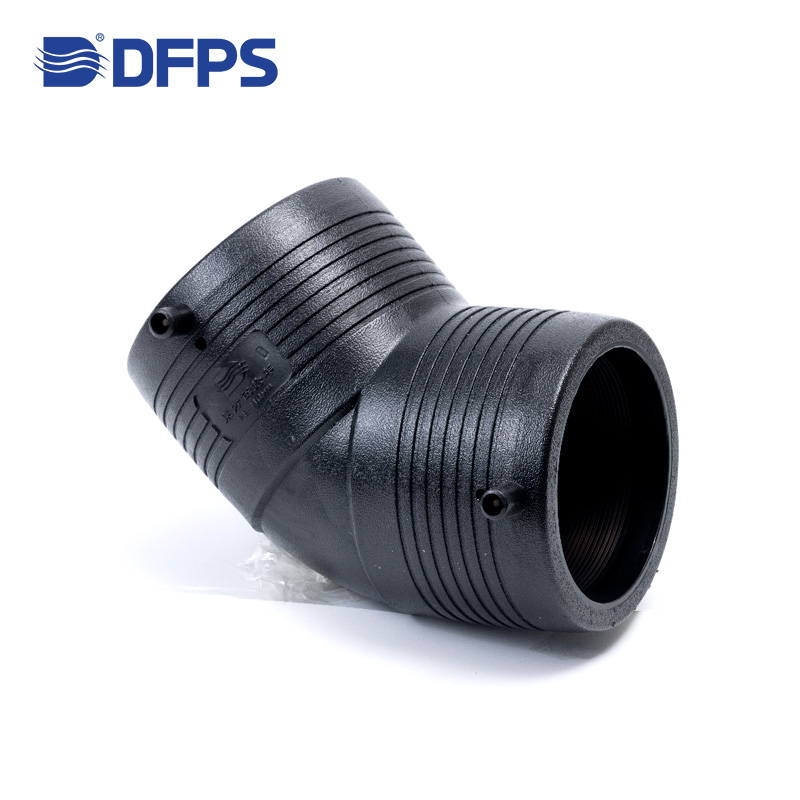

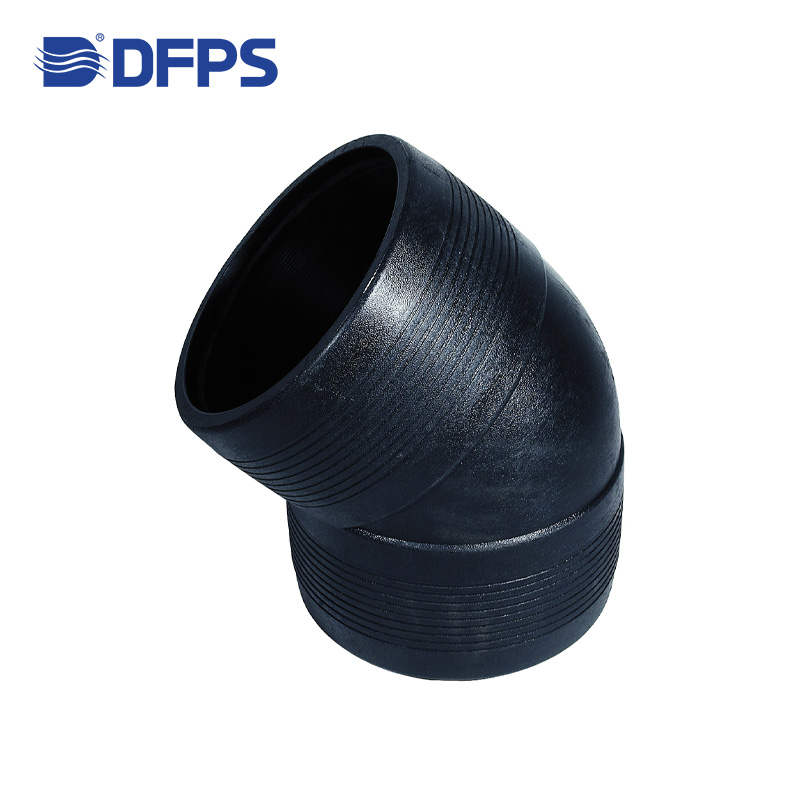

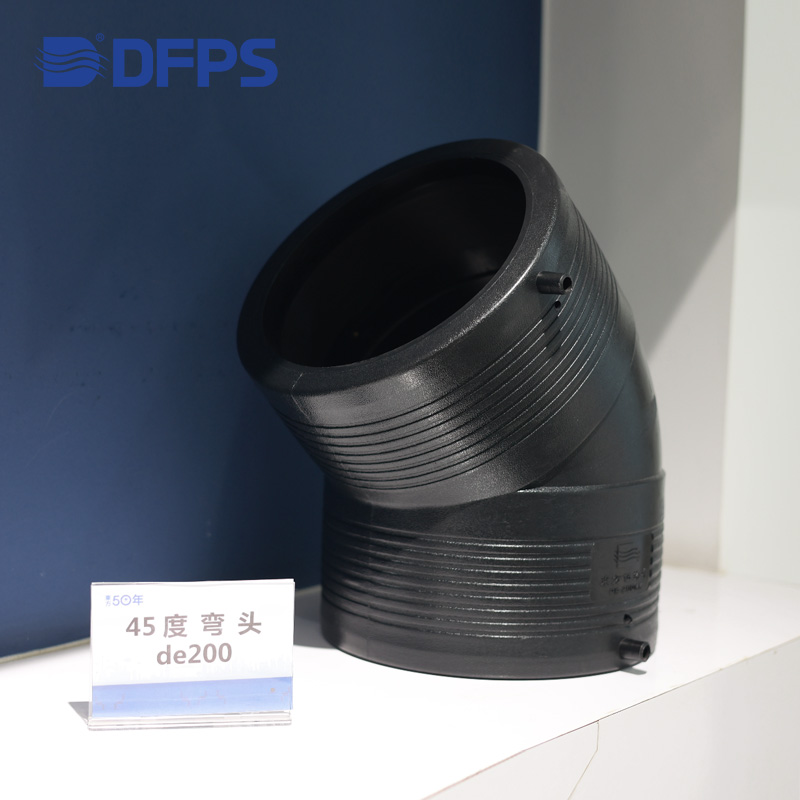

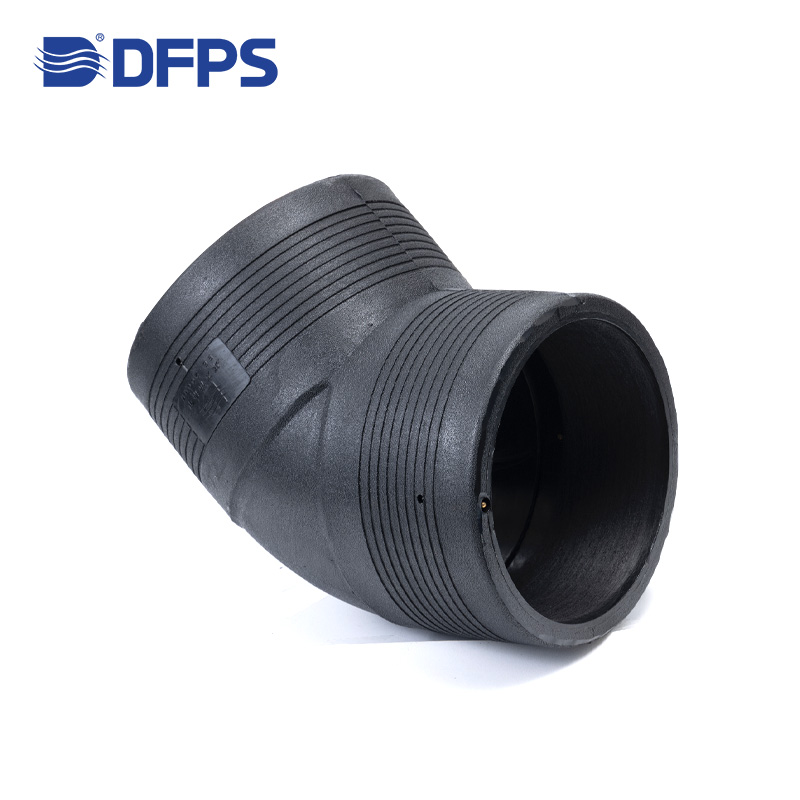

Electrofusion 45° Elbow | Nominal Diameterde / mm
| Fitting Outside Diameter D / mm ≥
| Fitting Length L / mm ≥
| Insertion Depth L1 / mm ≥
| Fusion Zone Length L2 / mm ≥
|
| 50 | 65 | 82 | 45 | 20 |
63 | 80 | 85 | 50 | 20 | |
75 | 95 | 85 | 55 | 30 | |
90 | 110 | 100 | 65 | 35 | |
110 | 140 | 115 | 80 | 40 | |
140 | 170 | 125 | 80 | 40 | |
160 | 200 | 150 | 105 | 45 | |
200 | 250 | 170 | 120 | 50 | |
225 | 270 | 175 | 110 | 55 | |
250 | 292 | 210 | 115 | 65 | |
315 | 366 | 235 | 135 | 80 | |
355 | 420 | 250 | 140 | 90 | |
400 | 473 | 275 | 150 | 100 | |
450 | 535 | 295 | 150 | 100 | |
500 | 595 | 310 | 160 | 100 |
